Máquina de fazer ração para peixe
Motor 1.Extruder Main: Siemens China 2.Relay: ABB 3.converter: Delta, pioneiro, CHNT, Schneider ou personalizar. 4.Dyer: sistema de circulação de ar quente economizar custos e elétrica. Material 5.Machine: aço inoxidável. Tempo 6.Guarantee: 2 anos 7. Nós fornecemos a fórmula básica quando você requisita nossas máquinas e envia nosso coordenador para a experimentação da instalação funcionada e treinando seus trabalhadores 8.Certificate: CE, TUV, BV.

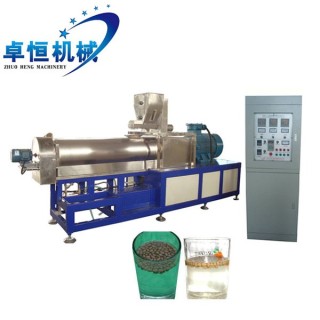

Máquina de fazer ração para peixe
Descrição do produto deMáquina de fazer ração para peixe
Nossa máquina para fabricação de ração para peixes foi projetada para processar uma ampla variedade de receitas.
Fish Feed Making Machine pode produzir qualquer número de texturas, formas, tamanhos, sabores e cores.
Nosso objetivo é fornecer ferramentas de produção flexíveis e escaláveis para produzir Cat Food Making Machine de alta qualidade, saborosa e nutritiva.
1. Detalhes da linha de produção deMáquina de fazer ração para peixe
Capacidade | 120 kg-4000 kg |
Fonte de energia | Baseado na fase 380V 50 Hz 3. Personalizado de acordo com o seu poder local. |
Detalhes da máquina | Aço 1.Stainless,: 201, 304, 316, a pedido 2. As peças elétricas podem ser ABB, Delta, Fuji, Omron, Siemens; Marca famosa como sua demanda. |
Certificado | CE, GOST, TUV, BV |
Raw Material | Corn meal, flour, soy meal, peanut meal. Bone /meat/fish/shrimp powder, etc. |
Product type | dog food, cat food, livestock feed; floating fish feed & sinking fish feed |
Product shape | Pet food: Pellet Fish feed: Granule, Pellet, stick, tablet |
Product size | Minimum Diameter: 1.5mm |
2. Advantages of Fish Feed Making Machine
1. We specialize in high capacity extruder which can reach 4000kg/h
2. The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.
a) With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.
3. SIMENS (China) Motor
4. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
a) Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, which prolong service life of gears.
7. Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.
3. Technical Parameters of Fish Feed Making Machine
Model | Installed power | Real power | Capacity | Dimension |
ZH65 | 35 KW | 22kw | 120-150kg/h | 39000x1200x2200mm |
ZH70 | 50kw | 37kw | 200-250kg/h | 41000x1500x2200mm |
ZH85 | 110kw | 75kw | 300-500kg/h | 43000x3500x4300mm |
ZH95 | 151kw | 110kw | 1-1.2 ton/h | 4700x1900x4800mm |
ZH135 | 425kw | 335kw | 3-4 ton/h | 5200*2000*4200mm |
4.Production process of Fish Feed Making Machine
Flour raw material mixing-extruding and shaping-drying-flavoring-cooling-packing
Packaging & Shipping of Fish Feed Making Machine
Packing:Floating Fish Feed Plant are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery.
We take good care of each machine for you
Delivery: 20-30 days after receiving advance payment.
Our Services
Company Information
Jinan ZhuoHeng Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipments. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system,soy protein system; as well as pet food/fish food system.
Our Services
Pre-sale service | Communicating with customers and learn your requirement |
Providing professional advisory services | |
Providing solutions according to customers’ requirement, And offer the quotation | |
Providing on-site visit to our factory | |
Providing samples | |
Selling service | Confirm every terms and details and sign contract with customers |
Manufacturing machines according to contract. | |
Trial running after production. | |
Packing machines and delivery on time | |
Providing relevant documents for Custom clearance (If necessary) | |
After-sale service | Send engineers for installation, trial running and training workers. |
Handling the problems occurred during use. | |
Supply spare and wearing parts on discount. | |
Help customers to solve any other problems |
Certificates
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer of food & feed extrusion machine
2. What's the price of your machines?
You can inquiry to us directly
3. What is your payment terms?
Recommend to use Alibaba’s Trade Assurance.
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C before shipment.
4. Can we provide the formula to you?
We can provide basic formula for producing the food etc.
And help customer to produce good quality food according customer’s detailed formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your factory size.
We can design the layout according to your factory size.
